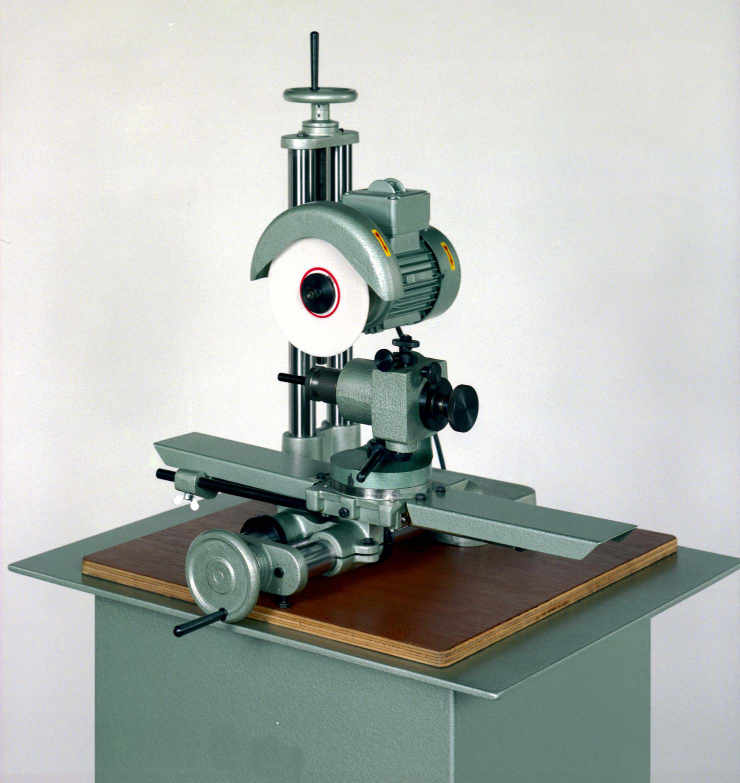

Tool grinding machine
Typ FS
Suitable for:
HSS and HM tools
- tool grinding machine type FS for sharpening groove, joining, folding and profile knives, slotted discs up to 400 mm diameter, knives, routers, carbide circular saw blades, etc.
- sturdy grey cast iron construction
- simple and clear structure
- the machine can be adjusted quickly and variably to any angle
- 360° rotatable motor
- dividing head very flexibly adjustable
- backlash-free grinding spindle bearing
- working feed slide in adjustable wire ball guide, therefore backlash-free operation
- ball bearing mounted dividing head with 24-point graduation
- fixed feed stop
- fast changeover times
Downloads
Do you need spare parts?
Order suitable spare parts for your machine quickly and easily directly from us.
Request / order directly now»Technical data Typ FS
Motor | 230 / 400 V 0,25 kW |
---|---|
rpm | 2.800 U/min |
Grinding wheel-Ø | 150 mm |
Grinding wheel bore | 20 mm |
Working carriage stroke | 240 mm |
Weight | 50 kg |
